Cleanroom Equipments
SS Passbox
SS 304 / 316
Stainless steel grade
Custom
Fabrication to spec
Cleanroom
Category
About This Product
Product Overview
Neelansh equipment & machines is a salient manufacturer, supplier & exporter of stainless steel Pass Box which are compatible in every working environments where it can be used in Pharmaceutical, Biotech, and laboratories.
At Neelansh equipment & machines we manufacture pass boxes with enhanced design and manufacturing techniques whereas it is in more space, robust, hygienic and easy to clean. Providing stiffener on bottom gives more strength and sturdiness. In addition to our standard designs and models, we produce pass boxes as per individual requirements of dimensions, size, shape, design, features, etc. We use high grade, tested and certified materials.
A pass box (pass-through box) transfers materials between two areas of different cleanliness without opening the cleanroom to personnel traffic. We make two types: a static pass box with interlocked doors and UV light, and a dynamic pass box that adds a blower with HEPA filtration to keep the chamber at Class 100 (ISO Class 5) during transfer.
Every pass box is manufactured in-house at our factory in Hadapsar, Pune. We supply, install and commission pass boxes across India, including Mumbai, Hyderabad, Chennai, Bangalore and Ahmedabad, and build each unit to your room layout, size and process requirements.
Guide
What is a pass box and how does it work?
A pass box, also called a pass-through box or transfer hatch, is a small stainless steel chamber built into the wall between two rooms. It lets materials, samples and tools move from one area to the other without anyone walking through, so the cleaner room is never opened to the corridor or the less clean area next to it.
Each side has its own door, and the two doors are interlocked: while one door is open, the other stays locked. The operator on the outer side places the material inside and closes the door; only then can the operator on the inner side open their door and take it out. This one-door-at-a-time rule is what stops unfiltered air and particles from following the material into the classified area.
In a dynamic pass box, a blower then pushes air through a pre-filter and a HEPA filter into the chamber, flushing out particles brought in with the material before the inner door is opened. A UV lamp, used while both doors are closed, reduces the microbial load on exposed surfaces between transfers. It supports, but does not replace, wiping the material and the chamber with an approved disinfectant.
Photos

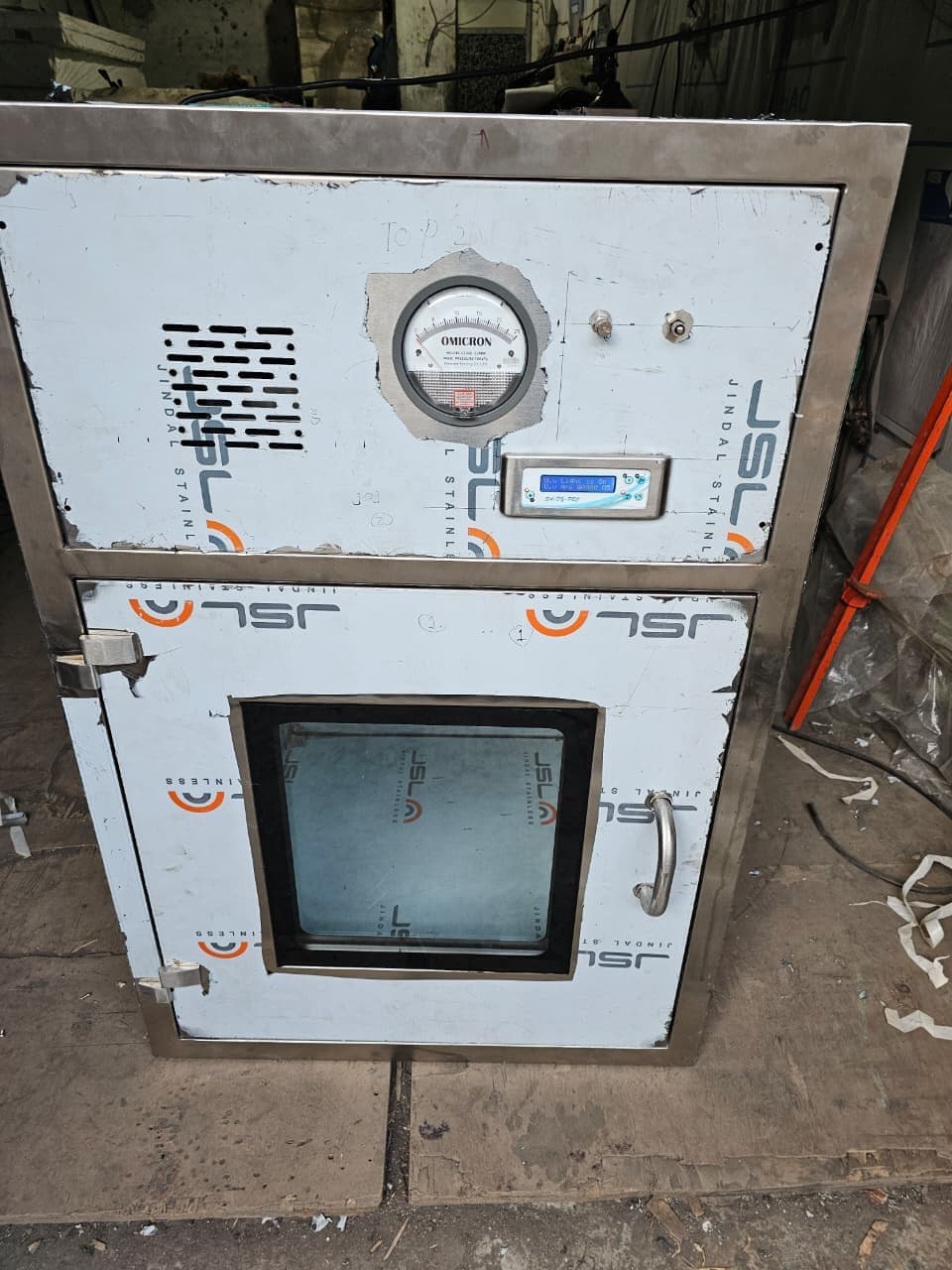

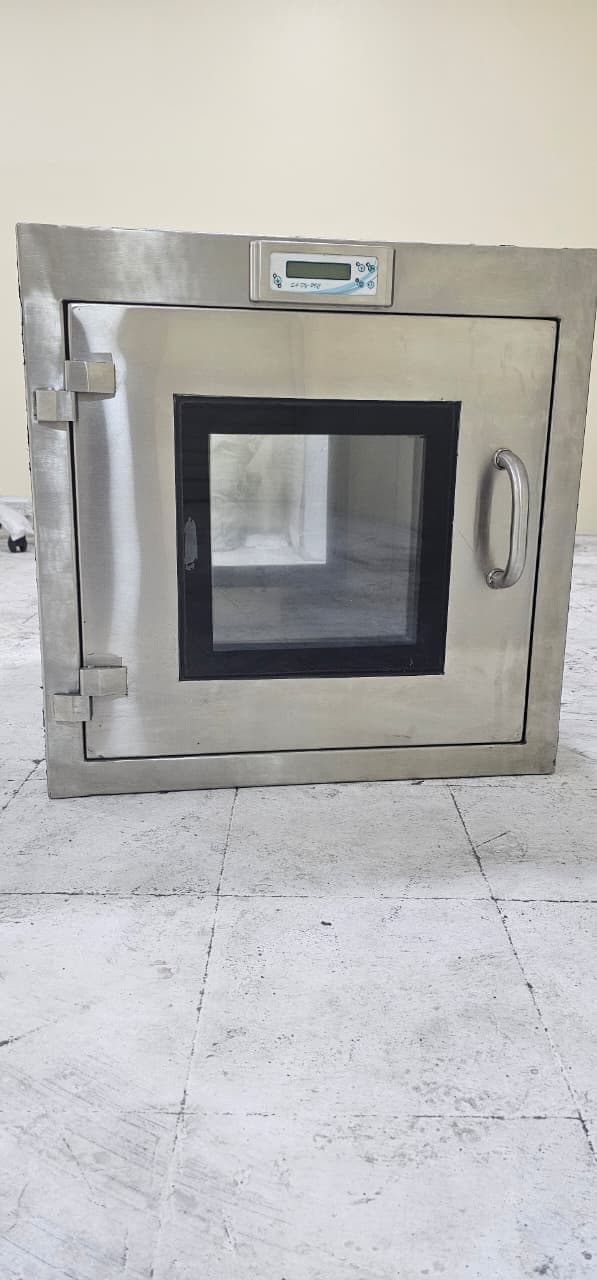

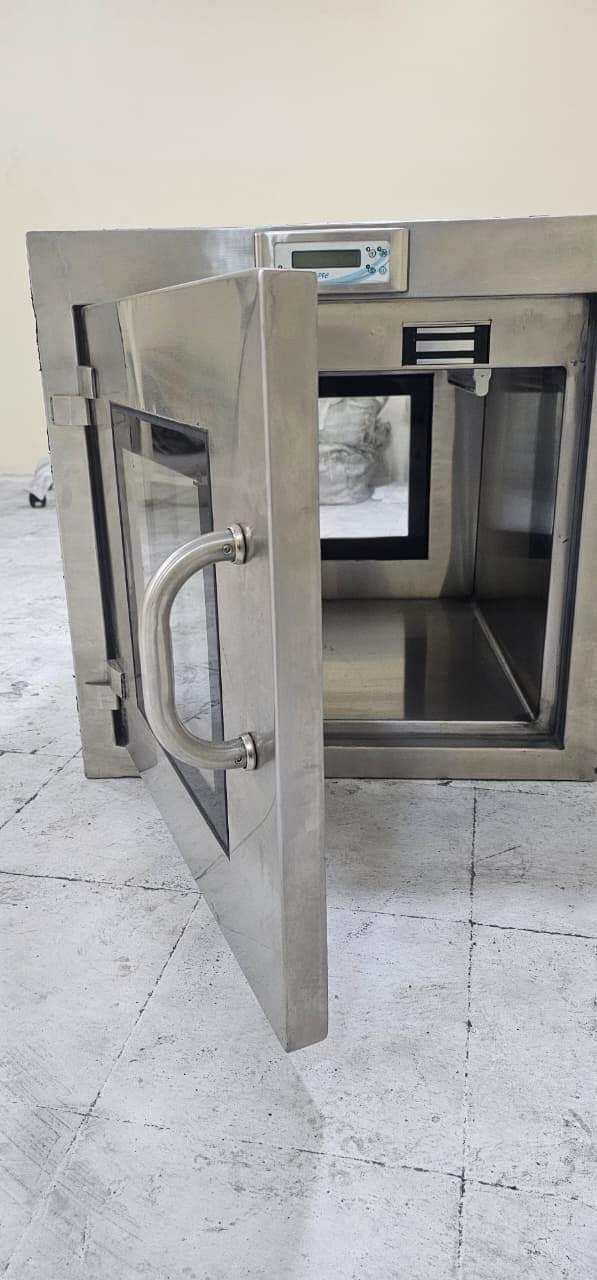

SS pass boxes we have made
Types
Pass box types we manufacture

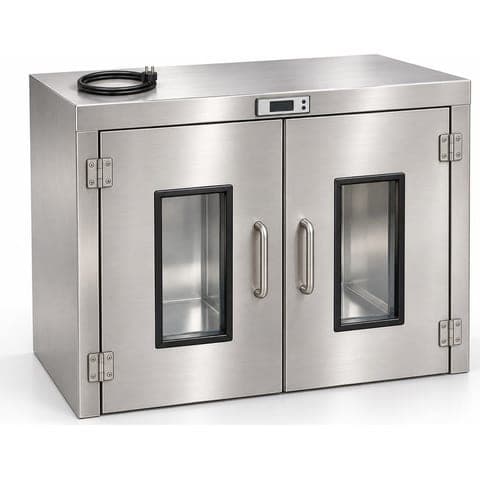

Static pass box
A sealed chamber with interlocked doors, UV light and door indicator lights, without a fan or filter. Used to transfer material between two areas of the same cleanliness class, for example between two Grade C rooms.

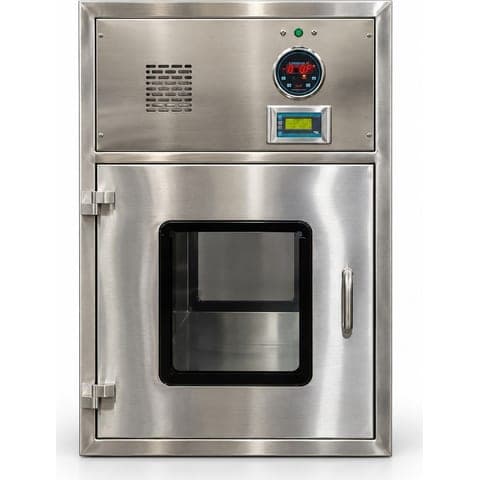

Dynamic pass box
Adds a blower with pre-filter and HEPA filter that flushes the chamber with Class 100 (ISO Class 5) air, plus a magnehelic differential pressure gauge and a PAO port for filter testing. Used between areas of different classes, such as a corridor and an aseptic area.

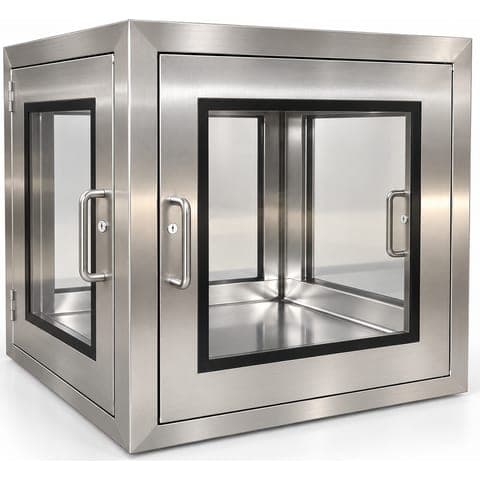

Three-door pass box
A chamber with doors on three sides, for layouts where material is shared between three rooms. Each door is interlocked with the others.
Applications
Where pass boxes are used
Pharmaceutical plants
Between dispensing, granulation, compression, filling and packing areas, and into sterile and aseptic zones.
Biotech and microbiology labs
Moving media, samples and consumables in and out of sterility testing and culture rooms.
Hospitals
Between operation theatres, CSSD, pharmacies and clean stores, to cut down people movement through clean corridors.
Quality control labs
Passing samples into microbiology and instrument rooms without breaking the room's classification.
Food and cosmetics
Transferring ingredients and packaging into hygienic processing rooms.
Cleanroom stores
Moving gowns, tools and spares from a store into the clean area.
Buying guide
How to choose the right pass box
Static or dynamic
Same class on both sides: a static pass box is usually enough. Different classes, or an aseptic area on one side: choose a dynamic pass box.
Chamber size
Size the chamber to the largest item you will transfer, with room to place it without touching the walls. Common internal sizes run from about 450 mm to 900 mm cubes. We build every pass box to the size, wall opening and wall thickness you need.
Interlock type
Mechanical interlocks are simple and need no power. Electromagnetic interlocks add door status lights and can be tied to the UV and blower cycle.
Material and finish
SS 304 suits most areas. SS 316 is the better choice where strong disinfectants are used daily. Choose a matt or mirror finish.
Wall and mounting
Tell us the wall type and thickness (masonry, modular panel, drywall) so the frame and flanges sit flush and seal properly.
Testing access
For dynamic units, a PAO port and a differential pressure gauge make HEPA integrity tests and routine checks straightforward.
How we work
From enquiry to installation
Every pass box is built to order through the same six stages, so the unit fits your room and your process.
- 01
Planning: your room layout, process and transfer or work needs
- 02
Evaluation: size, airflow, filtration and material grade
- 03
Inspection: site measurements and wall or ceiling openings
- 04
Design: drawings shared for your approval before fabrication
- 05
Manufacturing: fabricated in-house at our Pune factory
- 06
Installation: delivered, installed and commissioned at your site
Supply across India
Pass box manufacturer in Pune, supplying across India
Neelansh Equipments & Machines manufactures static and dynamic pass boxes in-house at our factory in Hadapsar, Pune. We supply, install and commission them across India, including Mumbai, Hyderabad, Chennai, Bangalore and Ahmedabad, and build each unit to your wall opening, room classes and transfer needs.
Pass boxes are usually planned together with the rest of the room's cleanroom equipment: laminar air flow units for open aseptic work, dispensing booths for weighing powders and bio safety cabinets for microbiology. Tell us the sizes and quantities you need and send us your requirement for a quotation. Items that must be sterile before they go through, such as garments, change parts and filters, are usually sterilised first in a vacuum steam sterilizer.
Product Details
Specifications
- Well engineered and specific design.
- Longer functional and service life.
- Having good durability and long lasting.
- Low maintenance.
Questions
F.A.Q.
Can we get the 3 side door pass box?
Yes, we are supplying 3 door type pass box.
Can you make bespoke/customized sizes pass box?
Yes, we are supplying customised size pass box.
What is the difference between a static and a dynamic pass box?
A static pass box has interlocked doors and a UV light and is used to transfer material between areas of the same cleanliness class. A dynamic pass box adds a blower with pre-filter and HEPA filter, so the chamber is flushed with Class 100 (ISO Class 5) air and can be used between areas of different classes.
Do you supply and install pass boxes outside Pune?
Yes. We manufacture in Pune and supply, install and commission pass boxes across India, including Mumbai, Hyderabad, Chennai, Bangalore and Ahmedabad. Share your requirement and we will send a quotation.
What sizes do pass boxes come in?
Pass boxes are commonly made with internal chambers from about 450 × 450 × 450 mm to 900 × 900 × 900 mm. We build to the size you need, including three-door models, so tell us the largest item you transfer and your wall thickness.
Why is a UV light fitted in a pass box?
The UV lamp reduces the microbial load on the chamber surfaces and on the outside of the material while both doors are closed. It supports, but does not replace, wiping the material and chamber with an approved disinfectant.
Which tests are done on a dynamic pass box?
Typically an interlock check, HEPA filter integrity test through the PAO port, air velocity measurement and a particle count of the chamber. Our dynamic pass boxes include a PAO port and a magnehelic differential pressure gauge for these checks.
Also Available

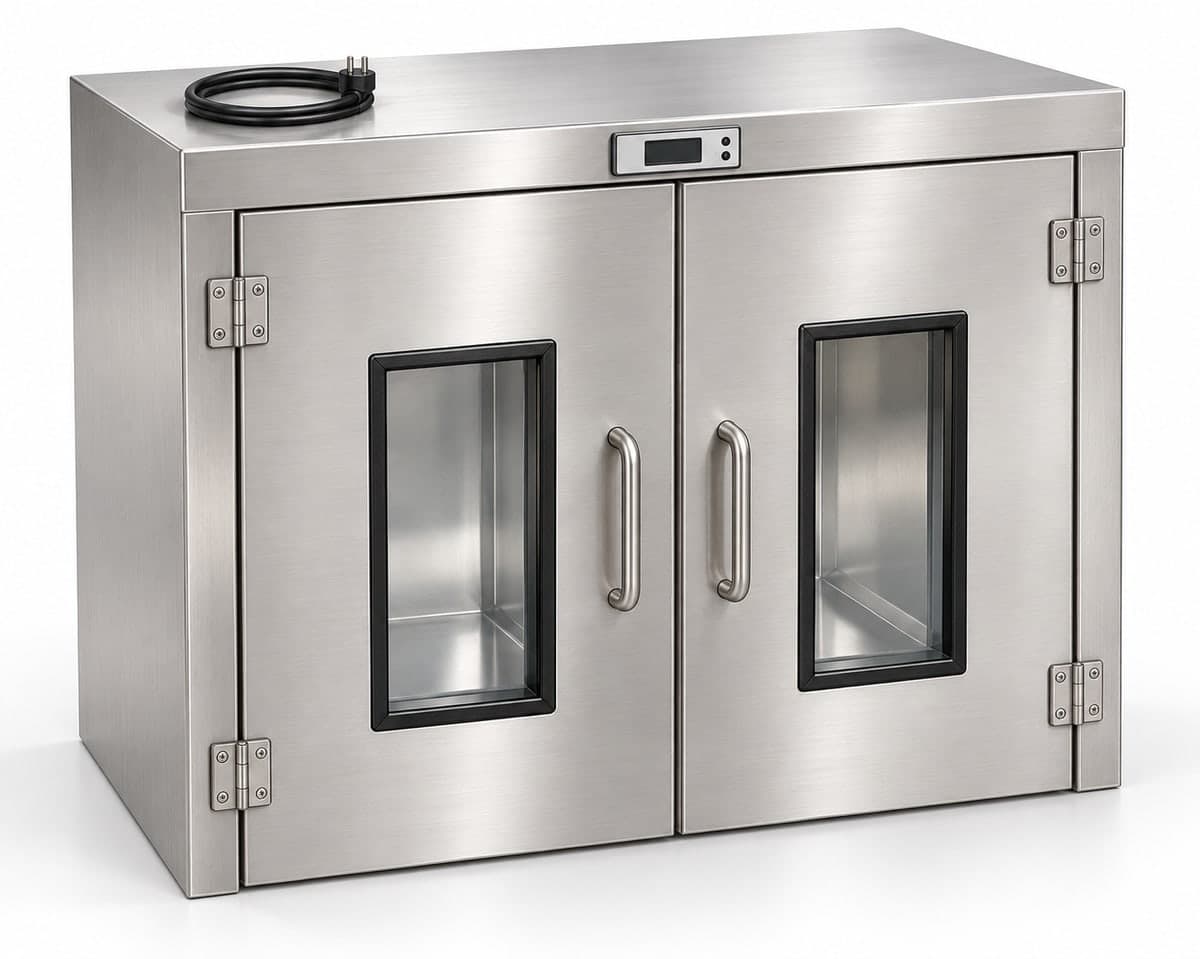

Static Pass Box
Key functions: safe material transfer between cleanrooms; minimizes personnel movement; prevents cross-contamination; maintains cleanroom integrity; supports GMP compliance; enhances workflow efficiency.
Product Details
Specifications
| MOC | Stainless Steel 304 grade |
|---|---|
| Finish | Matt / Mirror |
| Lighting | Squared LED Panel Light with Milky White Diffuser at Work Place |
| Door Interlocking | Electro-Magnetic and Mechanical Door Interlocking arrangement |
| Doors | Sandwiched type Door Double Skin View Panel, SS Handles & Proper Gasketing |
| Hour Meter | UV Light Hour Meter |
| Power Supply | Single Phase 220v~240v 50HZ |
| Standard Fitting | UV Light; Light indicator for doors; On/Off switch |
- SS 304/SS 316 construction
- Mechanical/Electromagnetic interlocking
- Toughened glass viewing panels
- Flush-mounted smooth design
- Easy-to-clean hygienic surfaces
- Custom sizes and configurations available
Also Available

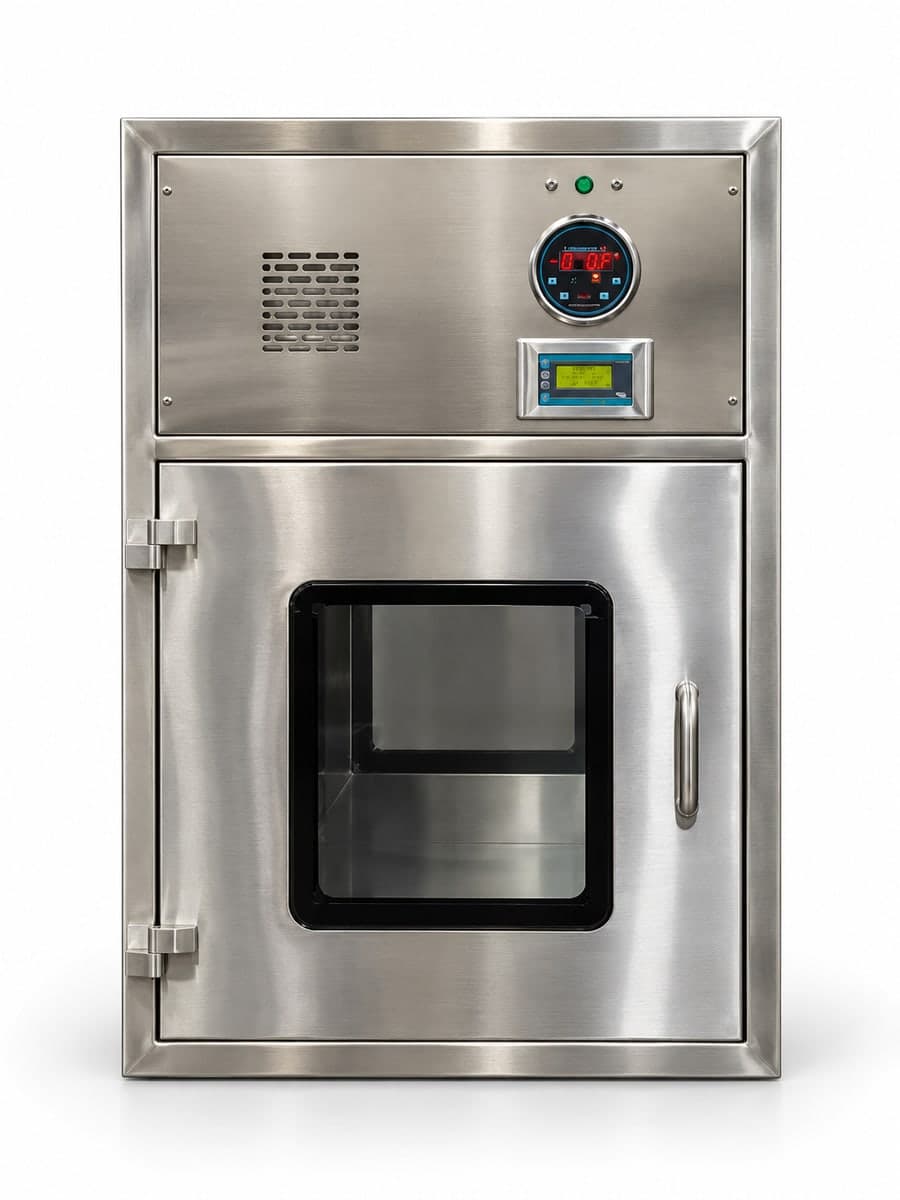

Dynamic Pass Box
Key functions: safe material transfer between clean areas; prevents cross-contamination; maintains cleanroom pressure balance; reduces personnel movement; removes airborne contaminants during transfer; supports GMP and regulatory compliance.
Product Details
Specifications
| MOC | Stainless Steel 304 grade |
|---|---|
| Finish | Matt / Mirror |
| Filters | i. Pre Filter- EU-5 rating (Efficiency 95% Down to 5 Micron); ii. Mini pleat HEPA Filter (Efficiency 99.999% up to EU-14 down to 0.3 Micron); iii. Fresh Air Filter- EU-7 Grade (Efficiency 97% Down to 3 Micron) |
| Air Cleanliness | Class 100 / ISO Class 5 |
| Air Blower | Backward Curved (Imported) Motor Blower |
| Lighting | Squared LED Panel Light with Milky White Diffuser at Work Place |
| Door Interlocking | Electro-Magnetic and Mechanical Door Interlocking arrangement |
| Doors | SS 304 Sandwiched type double skin walled door construction with 4mm transparent glass view panels with proper gasket, SS 304 Handles And aligned Hinges |
| Power Supply | Single Phase 220v~240v 50HZ |
| PAO Port | Poly Alfa Olefin HEPA Integrity Test Port |
| Standard Fitting | UV Light; Magnehelic Differential Gauge; Light indicator for doors; Hour Meter; On/Off switch |
- HEPA-filtered airflow system
- SS 304/SS 316 construction
- Mechanical/Electromagnetic interlocking
- UV light provision (optional)
- Differential pressure monitoring
- Easy-to-clean hygienic design
