Cleanroom Furniture
Visual Inspection Table
SS 304 / 316
Stainless steel grade
Custom
Fabrication to spec
Cleanroom
Category
About This Product
Product Overview
Neelansh equipment & machines is a salient manufacturer, supplier & exporter of stainless steel visual inspection table which are compatible in every working environments where it can be used in Pharmaceutical, Biotech, Bio plant, Food processing industries and Laboratories.
At Neelansh equipment & machines we manufacture visual inspection tables with enhanced design and manufacturing techniques whereas it is more compatible, robust, hygienic and easy to clean. Providing stiffener on top shelf gives more strength and sturdiness. Visual inspection table widely used in production area, granulation area, QA area, QC area etc.
Guide
What is a visual inspection table and how does it work?
A visual inspection table, also called an inspection table with light, is a stainless steel workstation where operators examine products by eye, under controlled light and against plain black and white backgrounds, to find and remove defective units. In pharmaceutical plants it is used to check vials, ampoules, bottles, tablets, capsules and packed products before they move to the next stage.
The black and white panels are what make the inspection work. Light-coloured particles, fibres and glass flakes stand out against the black panel, while dark particles, specks and discolouration show up against the white one. For injectable products, the pharmacopoeias (USP <790> and Ph. Eur. 2.9.20) describe manual inspection under 2,000 to 3,750 lux of light, looking at each container for about five seconds against each background while gently swirling or inverting it.

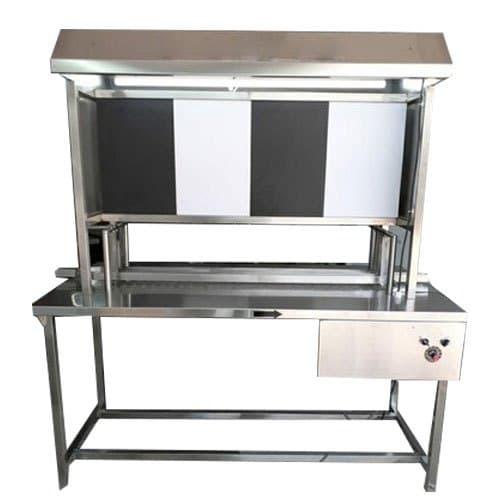

Our visual inspection table has an LED light under a hood above the work area, giving 2,000 lux of glare-free light on the inspection zone, with two white and two black acrylic panels in alternate positions behind it. A rejection drawer under the top keeps rejected units apart from accepted ones. The frame is SS 304, with SS 316 on request, and a stiffener under the top keeps the work surface rigid and free of vibration.
Photos

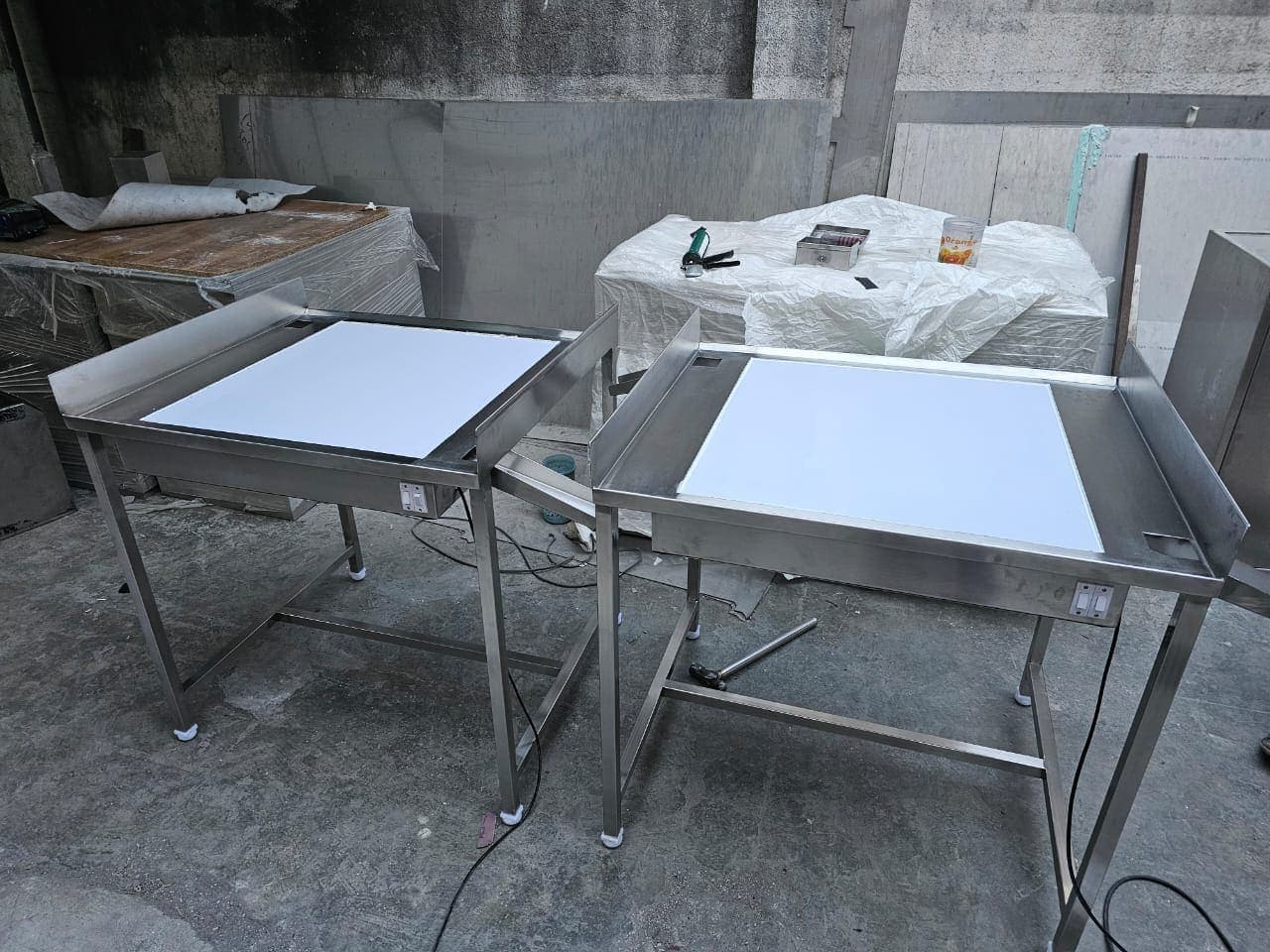

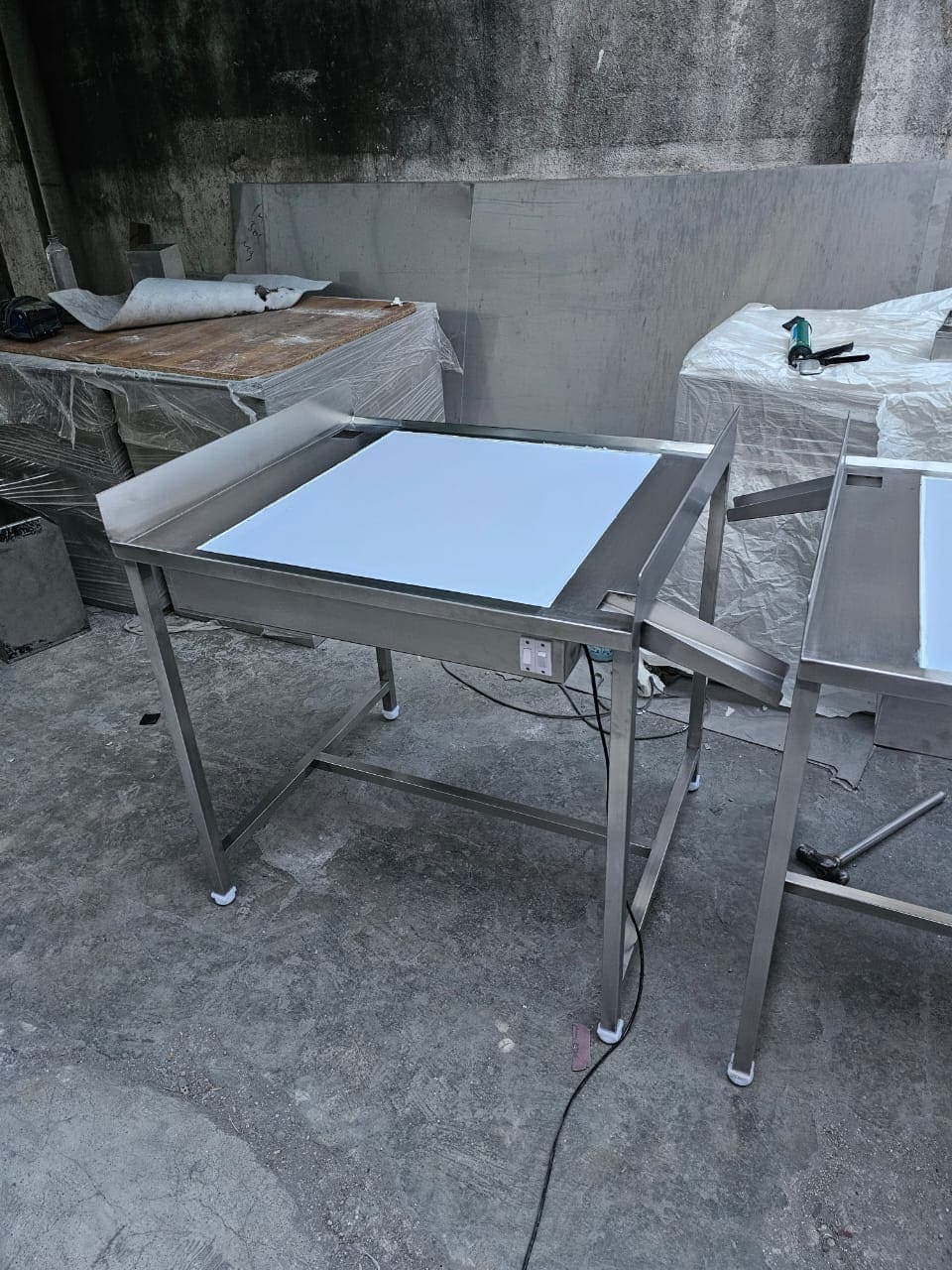

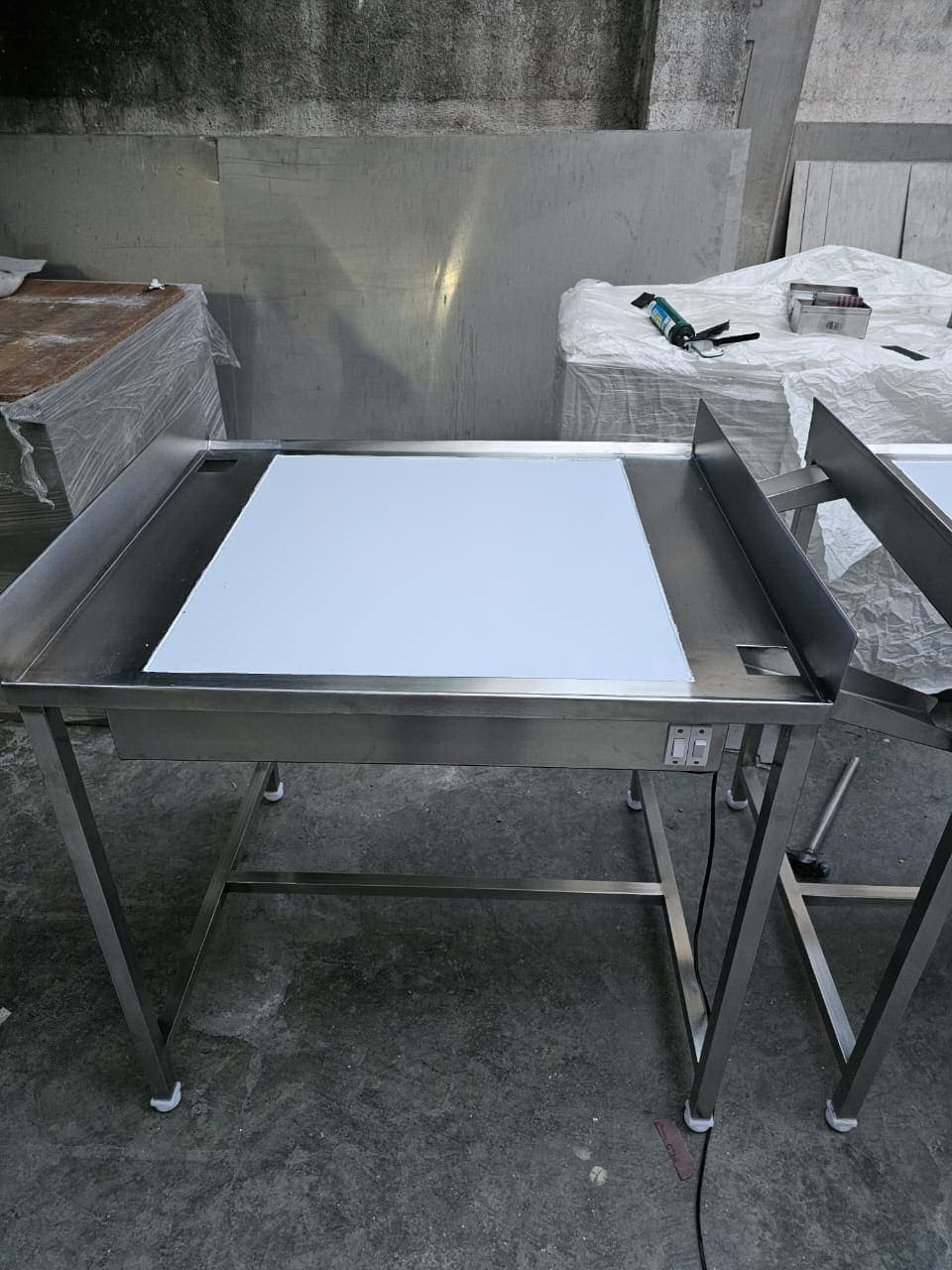

Visual inspection tables we have made
Construction
What goes into our visual inspection table
LED light with hood
Gives 2,000 lux of glare-free light on the inspection zone; the hood keeps the lamp out of the operator's eyes.
Black and white acrylic panels
Two white and two black panels in alternate positions, so each unit can be checked against both backgrounds.
Rejection drawer
A drawer under the top for defective units, so rejects cannot be mixed back into good product.
Stiffened SS top
A stiffener under the top keeps the surface rigid and steady during long inspection shifts.
Optional wheels
Fit wheels to move the table between rooms or away from the wall for cleaning.
Custom sizes
Length, working height and number of inspection stations made to suit your line and operators.
Applications
Where visual inspection tables are used
Injectable products
Checking filled vials, ampoules and bottles for particles, cracks, fill level and closure defects.
Production and granulation areas
Checking tablets, capsules and granules for broken units, spots and foreign matter.
QA and QC areas
Sampling, checks and release inspections against your quality procedures.
Packing lines
Checking labels, printing, seals and packs before cartons are closed.
Biotech and bio plants
Inspecting filled containers and finished products from biological processes.
Food processing
Sorting and checking products for foreign matter and visible defects.
Buying guide
How to choose the right visual inspection table
Light level
Check the light level your inspection procedure specifies. Manual inspection of injectables is commonly done at 2,000 to 3,750 lux; our standard light gives 2,000 lux at the inspection zone.
Background arrangement
Decide how many black and white panels you need and where, based on how many operators inspect at once.
Working height and size
Operators inspect for long periods, so choose a comfortable working height and enough length for each station.
Handling rejects
Plan where rejects go. A rejection drawer keeps them apart and makes reconciliation at the end of the batch easier.
Material and finish
SS 304 suits most areas; SS 316 where strong disinfectants are used. Both come in a matt or mirror finish.
Fixed or mobile
Choose a fixed table for a dedicated inspection room, or wheels if the table moves between lines.
How we work
From enquiry to installation
Every visual inspection table is built to order through the same six stages, so it fits your site and the way you work.
- 01
Planning: the products you inspect and your inspection procedure
- 02
Evaluation: size, light, background panels and material grade
- 03
Inspection: room layout, power points and floor space at your site
- 04
Design: drawings shared for your approval before fabrication
- 05
Manufacturing: fabricated in-house at our Pune factory
- 06
Installation: delivered, set up and handed over at your site
Supply across India
Visual inspection table manufacturer in Pune, supplying across India
Neelansh Equipments & Machines manufactures stainless steel visual inspection tables in-house at our factory in Hadapsar, Pune, and supplies them across India, including Mumbai, Hyderabad, Chennai, Bangalore and Ahmedabad. Each table is built to your size, number of stations and inspection set-up.
Inspection tables are often planned with other cleanroom furniture and equipment: a tablet inspection belt for continuous inspection of tablets and capsules, and SS working tables for sorting and packing. Tell us what you inspect and how many operators work at once, and send us your requirement for a quotation.
Product Details
Specifications
| Material | 304 grade stainless steel |
|---|---|
| Finish | Matt/Mirror |
- Black & white acrylic
- Available with LED light with hood
- Available with wheels
Questions
F.A.Q.
Can you make customized size table?
Yes, we can make customised size table.
What is the difference between stainless steel and mild steel?
Stainless steel will not rust while mild steel will. But we are applying powder coating process for preventing from rusting in mild steel.
Do you supply visual inspection tables outside Pune?
Yes. We manufacture in Pune and supply visual inspection tables across India, including Mumbai, Hyderabad, Chennai, Bangalore and Ahmedabad. Share your size and quantity and we will send a quotation.
Why does a visual inspection table have black and white backgrounds?
Light-coloured particles and fibres are easiest to see against black, and dark particles and specks against white. Checking each unit against both backgrounds catches defects that one background alone would miss.
How bright is the light on your visual inspection table?
The LED light with hood gives 2,000 lux at the inspection zone. Pharmacopoeial manual inspection of injections uses 2,000 to 3,750 lux, so tell us the level your procedure specifies when you send your requirement.
