SS 304 / 316

Stainless steel grade

Custom

Fabrication to spec

Material Handling

Category

About This Product

Product Overview

Key functions: transports aprons, trays, and pans safely; improves material handling efficiency; reduces manual handling effort; prevents product contamination; organizes production workflow.

Guide

What are apron and pan trolleys and how do they work?

An apron trolley and a pan trolley are two specialised stainless steel trolleys for moving items that are awkward to carry by hand. An apron trolley carries aprons and garments so they can be taken to and from change rooms, wash areas and the laundry without being bundled up, dropped or put down on dirty surfaces. A pan trolley, also called a tray trolley or tray rack trolley, is a tall frame with pairs of runners at regular heights, so pans and trays slide in one above the other and can be moved together.

A pan trolley saves both floor space and handling. Instead of carrying trays one at a time, a whole stack is loaded at one point and wheeled to the next: from a preparation area to a dryer, an oven, a cold room or a store, and back to the wash area. Tray dryers and ovens in pharmaceutical and food plants work the same way, with trays stacked on a mobile trolley that is loaded and unloaded as a unit. The runners hold each tray level and keep a gap between trays, so air can move between them and items on one tray do not touch the tray above.

Because both trolleys come into contact with garments, trays and the products on them, they need to be easy to clean. Smooth stainless steel with rounded edges and welded joints can be washed and wiped down along with the items it carries, and does not hold dirt or water in hidden corners. A matt or mirror finish makes residue easy to see and remove.

Our SS apron trolleys and SS pan trolleys are made in SS 304 or SS 316 in a matt or mirror finish, with heavy-duty swivel castors, an ergonomic push handle and a sturdy frame with a high load-bearing capacity. The finish is corrosion resistant and rust proof, and both trolleys are easy to clean and maintain. Designs and dimensions are customised to your garments, pans and trays on request.

Our range

Apron and pan trolleys we manufacture

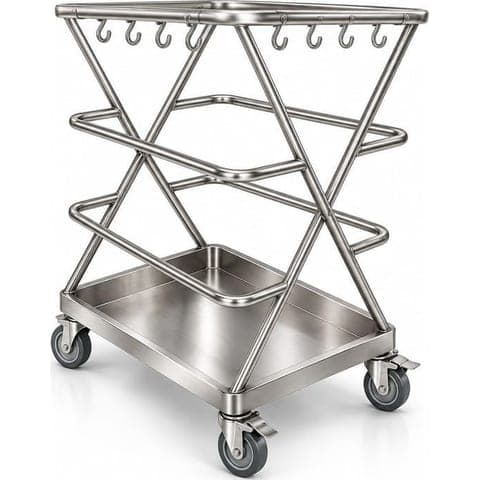

SS apron trolley made by Neelansh Equipments & Machines, Pune

SS apron trolley

A stainless steel trolley for moving aprons and garments between change rooms, wash areas and the laundry.

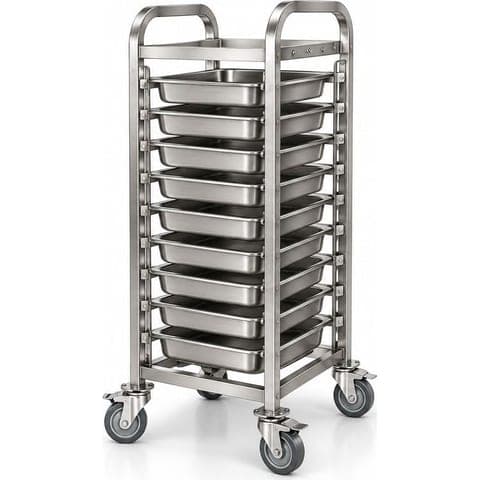

SS pan trolley made by Neelansh Equipments & Machines, Pune

SS pan trolley

A tall stainless steel frame with runners at regular heights, so pans and trays slide in one above the other and move as one load.

Applications

Where apron and pan trolleys are used

Pharmaceutical plants

Moving trays of materials between process rooms, dryers and stores, and aprons to and from change rooms.

Food processing

Moving pans and trays of ingredients and products between preparation, ovens, cold rooms and packing.

Hospitals

Moving aprons and garments to the laundry, and trays between kitchens, stores and wards.

Biotech facilities

Moving trays and garments between process, support and wash areas.

Laboratories

Carrying trays of samples, glassware and consumables, and lab coats to and from the wash.

Wash areas

Taking used trays and garments to the wash area and bringing clean ones back.

Buying guide

How to choose the right apron or pan trolley

Pan and tray size

Tell us the length, width and depth of your pans or trays, so the runners are spaced and sized to hold them level.

Number of levels

Count how many pans or trays move together, and the gap each needs above it for the product and for air.

Garments per trolley

For an apron trolley, tell us how many aprons or garments it carries at a time and how they are handled at each end.

Load

Tell us the weight of a full pan or tray, so the frame, runners and castors are sized for a fully loaded trolley.

Matt or mirror finish

Matt and mirror finishes are both available; a mirror finish shows residue most clearly where cleaning is checked by eye.

SS 304 or SS 316

SS 304 suits most dry areas; SS 316 is the better choice for wet areas and frequent washing with stronger cleaning agents.

How we work

From enquiry to installation

Every apron and pan trolley is built to order through the same six stages, so it fits your site and the way you work.

  1. 01

    Planning: what the trolley carries, how much, and where it is loaded and unloaded

  2. 02

    Evaluation: pan or tray size, number of levels, finish, material and castors

  3. 03

    Inspection: doors, lifts, ovens, dryers or wash areas the trolley must fit

  4. 04

    Design: drawings shared for your approval before fabrication

  5. 05

    Manufacturing: fabricated in-house at our Pune factory

  6. 06

    Installation: delivered to your site and handed over

Supply across India

Apron and pan trolley manufacturer in Pune, supplying across India

Neelansh Equipments & Machines manufactures SS apron trolleys and SS pan trolleys in-house at our factory in Hadapsar, Pune, and supplies them across India, including Mumbai, Hyderabad, Chennai, Bangalore and Ahmedabad. Each trolley is built to order, so the frame, runners and finish can match your pans, trays and garments.

For storing aprons and shoes at the point of use, see our cabinet for apron and shoes and SS stand accessories. For washed items that need to drain and dry, an SS perforated trolley is the better fit. Browse all material handling equipment, or send us your requirement with your pan or tray sizes.

Product Details

Specifications

  • SS 304/SS 316 construction
  • Heavy-duty caster wheels
  • Ergonomic push handle
  • Corrosion-resistant finish
  • Sturdy, high load-capacity design
  • Easy-to-clean hygienic surfaces

Questions

F.A.Q.

What is a pan trolley used for?

A pan trolley holds pans or trays one above the other on runners, so a whole stack can be moved at once: from preparation to a dryer, oven, cold room or store, and back to the wash area.

Can the pan trolley be made to fit our trays?

Yes. Designs and dimensions are customised on request. Tell us the size of your pans or trays, how many move together and the gap needed between them, and we will design the runners to suit.

Do you supply SS apron and pan trolleys outside Pune?

Yes. We manufacture SS apron and pan trolleys in-house in Pune and supply them across India, including Mumbai, Hyderabad, Chennai, Bangalore and Ahmedabad. Tell us the loads, sizes and quantities and we will quote with delivery to your site.
